סוללות למגורים

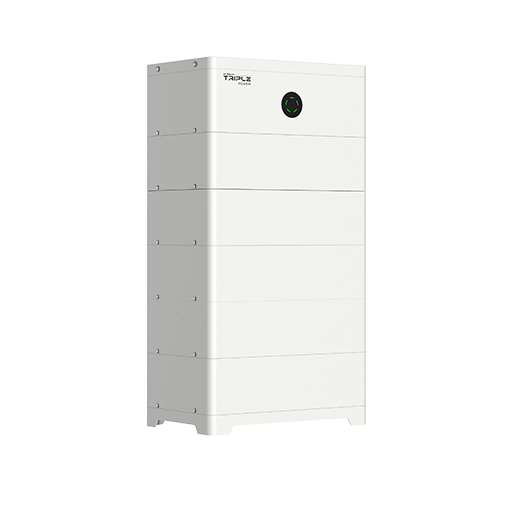

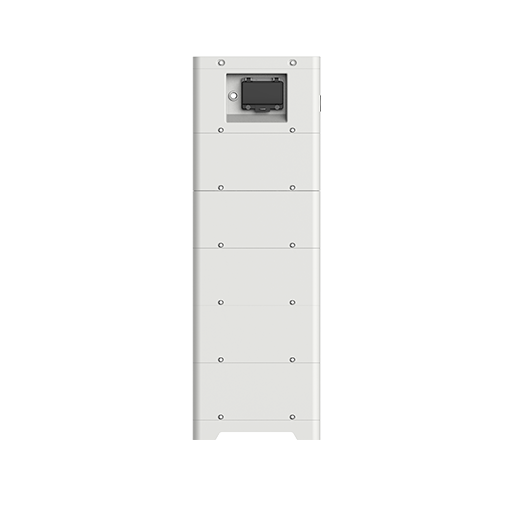

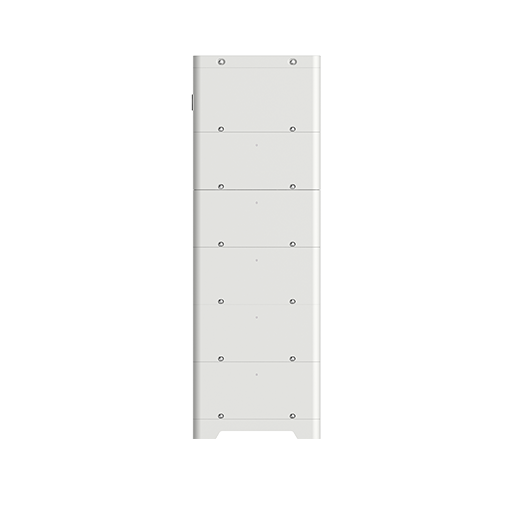

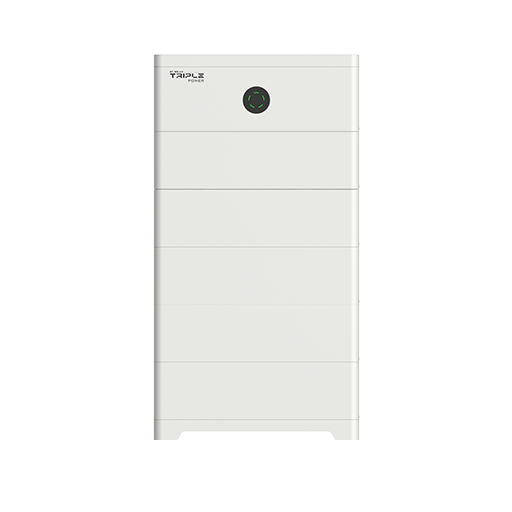

TSYS-HS51

  • 10,2 kWh-66,5 kWh

ה-TSYS-HS51 מציע טווח קיבולת רחב מ-10,2kWh עד 66,3kWh, מה שהופך אותו למתאים לצרכי אנרגיה שונים. התאימות שלו ל-TCBox-70 מאפשרת הרחבה של עד 3 מגדלי סוללות לקיבולת מוגברת.

יתרון המוצר

ה-TSYS-HS5 תומך בזרם טעינה/פריקה של עד 70A, ומספק העברת אנרגיה מהירה. עם הגנת IP66, הוא מבטיח פעולה אמינה בסביבות מגוונות. המערכת כוללת גם כבל 2 ב-1 אופציונלי לחיבורים מקבילים, המסייע להאריך את תוחלת החיים ולמטב את הביצועים.

צרו קשר

Assured Reliability

  • IP66 protection degree

  • LiFePO4 battery cell & high-performance processors

  • Aerosol fire suppression for precise protection


Smart Management

  • Remote fault diagnosis, upgrade and maintenance

  • Unique battery heating tech and wide temperature  tolerance

  • Optional parallel connection using a two-in-one cable  for easy capacity expansion and extend battery lifespan

  • Maximum 10% expansion of effective power over the entire  life cycle to increase cycle life (optimizer version)

  • 3-hour rapid equalization (optimizer version)


High Performance

  • 10.2-66.5 kWh wide capacity range

  • Max. 70A charging / discharging current

  • Cycle life > 6000 times

Flexible Adaptability

  • Compatible with TCBox-70, up to 3 towers of batteries

  • Compact and stackable for easy installation

  • Supporting direct battery expansion

  • Supporting mixed use of new and old batteries, supports  rapid capacity expansion, plug and play, no energy loss (optimizer version)


פרמטרים של מוצר

  • T-HS10.2
  • T-HS15.3
  • T-HS20.4
  • T-HS25.6
  • T-HS30.7
  • T-HS35.8
  • T-HS40.9
  • T-HS46.0
  • T-HS51.2
  • T-HS56.3
  • T-HS61.4
  • T-HS66.5
  • T-HS10.2
    • SYSTEM SPECIFICATION
      Number of modules2
      Rated energy10.2 kWh
      Rated voltage102.4 V
      Rated power

      6.1 kW

      Dimension (W x H x D)600 × 621 × 376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Net weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS15.3
    • SYSTEM SPECIFICATION
      Number of modules3
      Rated energy15.3 kWh
      Rated voltage153.6 V
      Rated power

      9.2 kW

      Dimension (W x H x D)600x789 x376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS20.4
    • SYSTEM SPECIFICATION
      Number of modules4
      Rated energy20.4 kWh
      Rated voltage204.8 V
      Rated power

      12.3 kW

      Dimension (W x H x D)600x957x376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)46 kg / 47.1 kg (with optimizer)
      Battery weight46 kg


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS25.6
    • SYSTEM SPECIFICATION
      Number of modules5
      Rated energy25.6 kWh
      Rated voltage256.0 V
      Rated power

      15.4 kW

      Dimension (W x H x D)600 x 1125 x 376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS30.7
    • SYSTEM SPECIFICATION
      Number of modules6
      Rated energy30.7 kWh
      Rated voltage307.2 V
      Rated power

      18.4 kW

      Dimension (W x H x D)600x1293 x376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS35.8
    • SYSTEM SPECIFICATION
      Number of modules7
      Rated energy35.8 kWh
      Rated voltage358.4 V
      Rated power

      21.5 kW

      Dimension (W x H x D)600 x1461 x376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS40.9
    • SYSTEM SPECIFICATION
      Number of modules8
      Rated energy40.9 kWh
      Rated voltage409.6 V
      Rated power

      24.6 kW

      Dimension (W x H x D)600x1629x376 mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS46.0
    • SYSTEM SPECIFICATION
      Number of modules9
      Rated energy46.0 kWh
      Rated voltage460.8 V
      Rated power

      27.6 kW

      Dimension (W x H x D)

      600x957x376mm

      +600x1125x376mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS51.2
    • SYSTEM SPECIFICATION
      Number of modules10
      Rated energy51.2 kWh
      Rated voltage512.0 V
      Rated power

      30.7 kW

      Dimension (W x H x D)

      600x1125x376mm

      +600x1125x376mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS56.3
    • SYSTEM SPECIFICATION
      Number of modules11
      Rated energy56.3 kWh
      Rated voltage563.2 V
      Rated power

      33.8 kW

      Dimension (W x H x D)

      600x1293x376mm

      +600x1125x376mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS61.4
    • SYSTEM SPECIFICATION
      Number of modules12
      Rated energy61.4 kWh
      Rated voltage614.4 V
      Rated power

      36.9 kW

      Dimension (W x H x D)

      600x1293x376mm

      +600x1293x376mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66


  • T-HS66.5
    • SYSTEM SPECIFICATION
      Number of modules13
      Rated energy66.5 kWh
      Rated voltage665.6 V
      Rated power

      39.9 kW

      Dimension (W x H x D)

      600x1461x376mm

      +600x1293x376mm


    • GENERAL
      BMS Dimensions (L × W × H)600 × 225 × 376 mm
      BMS Weight18.5 kg
      Battery typeLi-ion (LFP)
      Module capacity5.1 kWh
      Battery dimension (W x H x D)600 × 168 × 376 mm
      Battery weight46 kg / 47.1 kg (with optimizer)


    • GENERAL SPECIFICATION
      EnvironmentOutdoor / Indoor
      Protection degreeIP66
