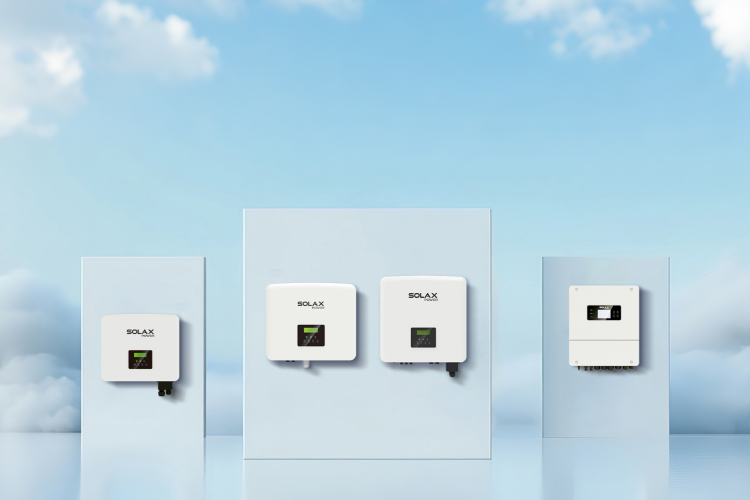

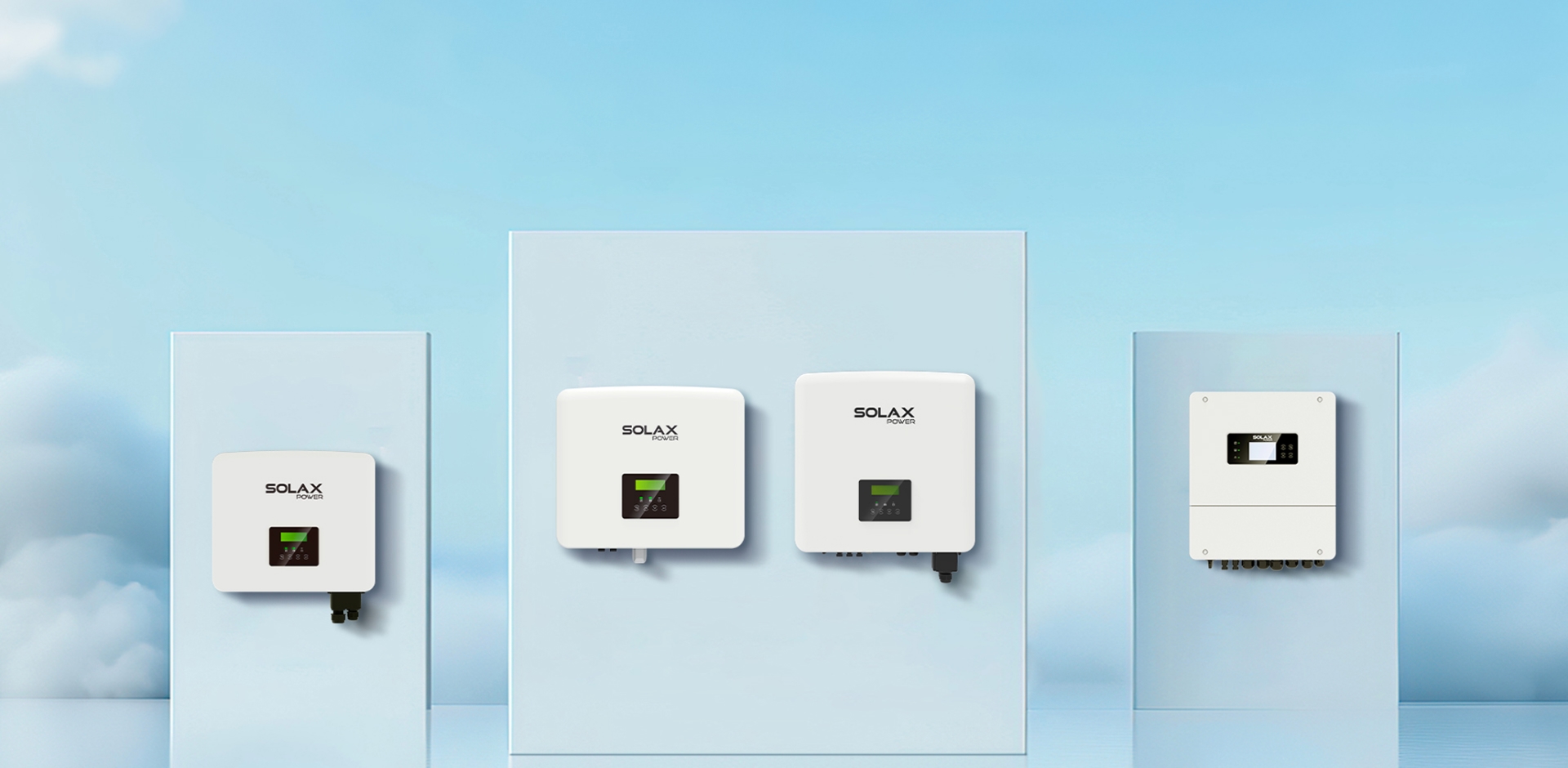

Residential Energy Storage Inverters
Ideal for solar energy storage, home battery backup, and off-grid power solutions, it supports sustainable living and maximizes solar efficiency.
Product Parameters
-
X3-GRD-350K-HV-
PV INPUT
Max. PV input power per MPPT 525 kWp MPPT voltage range 500 ~ 1500 V No. of MPP trackers / strings per MPP tracker 6 / 5 Max. input current per MPPT 115 A -
AC OUTPUT
Rated output power 350 kW Rated AC voltage 3 / PE, 800 V -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 1225 x 825.5 x 369.1 mm
Net Weight < 130 kg Cooling concept Smart air cooling
-
-
X3-GRD-333K-HV
-
PV INPUT
Max. PV input power per MPPT 499.5 kWp MPPT voltage range 500 ~ 1500 V No. of MPP trackers / strings per MPP tracker 6 / 5 Max. input current per MPPT 115 A -
AC OUTPUT
Rated output power 333 kW Rated AC voltage 3 / PE, 800 V -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 1225 x 825.5 x 369.1 mm
Net Weight < 130 kg Cooling concept Smart air cooling
-
-
X3-GRD-320K-HV
-
PV INPUT
Max. PV input power per MPPT 480 kWp MPPT voltage range 500 ~ 1500 V No. of MPP trackers / strings per MPP tracker 6 / 5 Max. input current per MPPT 115 A -
AC OUTPUT
Rated output power 320 kW Rated AC voltage 3 / PE, 800 V -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 1225 x 825.5 x 369.1 mm
Net Weight < 130 kg Cooling concept Smart air cooling
-
-
X3-GRD-300K-HV
-
PV INPUT
Max. PV input power per MPPT 450 kWp MPPT voltage range 500 ~ 1500 V No. of MPP trackers / strings per MPP tracker 6 / 5 Max. input current per MPPT 115 A -
AC OUTPUT
Rated output power 300 kW Rated AC voltage 3 / PE, 800 V -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 1225 x 825.5 x 369.1 mm
Net Weight < 130 kg Cooling concept Smart air cooling
-
