ESS למגורים

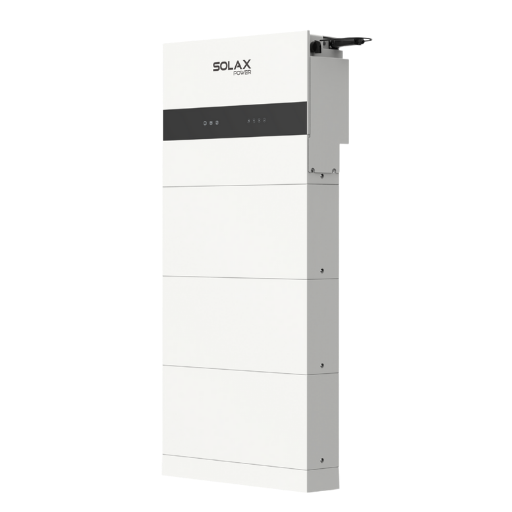

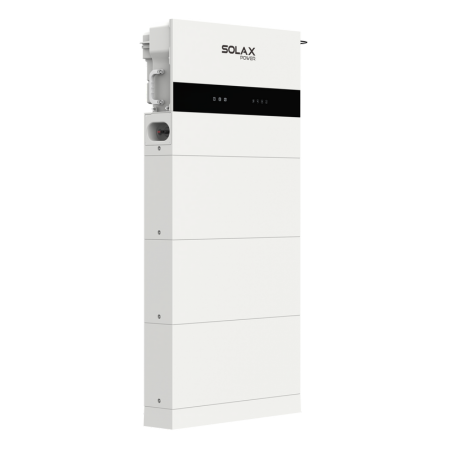

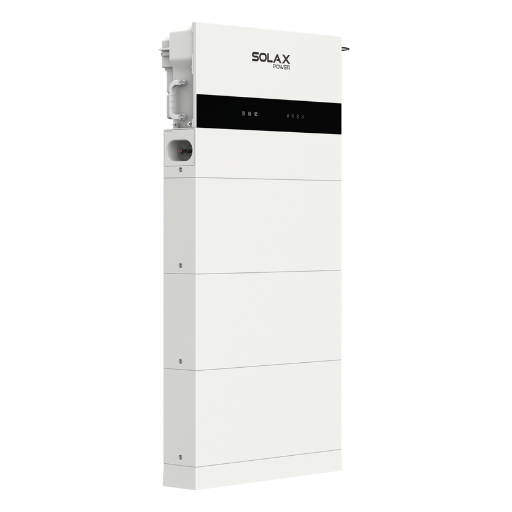

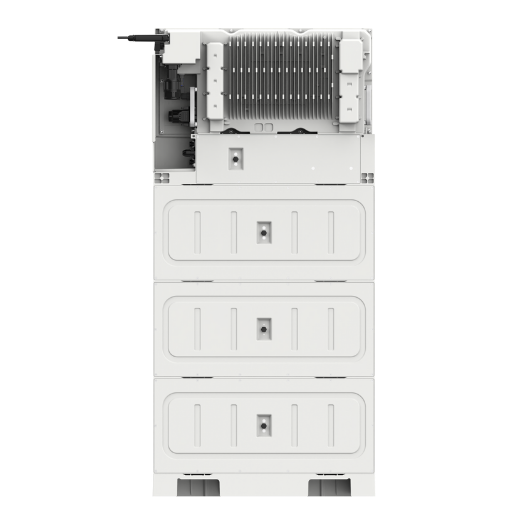

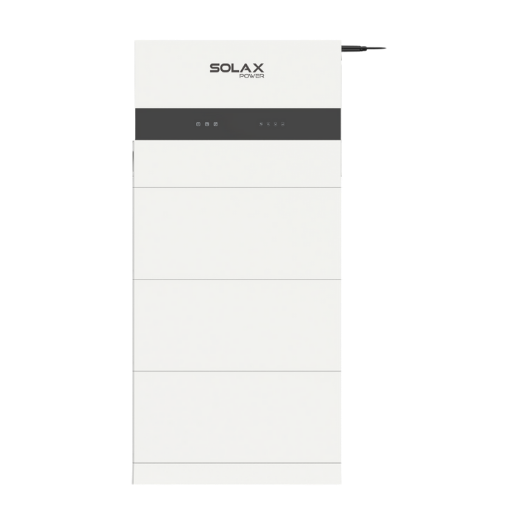

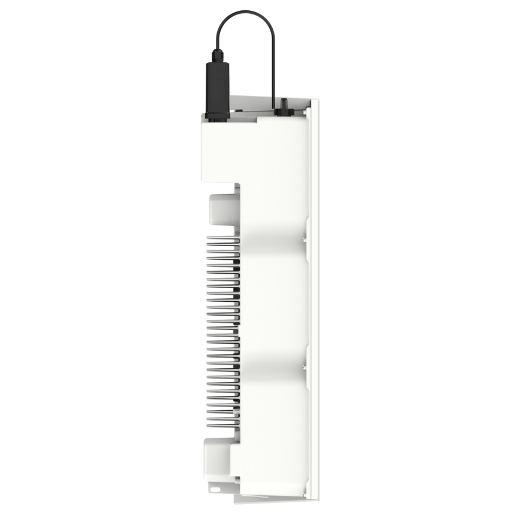

X3-IES-P
-
4kW / 5kW / 6kW / 8kW / 10kW / 12kW / 15kW
מהפך X3-IES-P מיועד לגמישות ופשטות, וכולל מבנה קומפקטי של הכנס-הפעל הכל-באחד המייעל את ההתקנה. הוא מסתגל ללא מאמץ ליישומים מגוונים עם תמיכה במשאבות חום, מטעני EV וסצנות חכמות.
-
צפה בסרטון
יתרון המוצר
ה-X3-IES-P מציע 200% PV כניסת אוברסייז ומספק עד 20A לכל MPPT, וממקסם את קציר השמש בכל תנאי. מתח הפעלה נמוך וטכנולוגיית מעקב MPP גלובלית מייעלים את לכידת האנרגיה לאורך היום.
Assured Reliability
IP66 protection degree
Type II SPD on AC&DC side
AFCI protection (optional)**
Unique battery heating tech and wide temperature tolerance
Up to 200% EPS output for 10s
UPS-level switchover time<10ms
Smart Management
Al ready, forecasting solar generation and home consumption for smart energy management strategy control*
VPP ready with a variety of compatibility (OpenADR, IEEE2030.5, FCAS, API)**
Micro-grid support for real-time balance in grid/off-grid
Wireless meter solution
Smart Schedule, Smart Scene, and 7*24h TOU
Global MPP scan for optimal energy harvest
High Performance
Max. 3 MPPTs for versatile application scenarios
200% oversizing and 200% PV input power
Max. 20A PV input per MPPT
Low startup voltage for higher energy harvest
Flexible Adaptability
All-in-one, plug-and-play design
Support smart scene functions (e.g., heat pump, EV charger)
Versatile installation for varied needs
פרמטרים של מוצר
-
X3-IES-4K-P-
PV INPUT
Max. recommended PV array power
8 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
2/(1/1)
Max. input current per MPPT
20 A/20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
4kW
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
4 kVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Cooling concept Nature cooling Net Weight 37 kg
-
-
X3-IES-5K-P
-
PV INPUT
Max. recommended PV array power
10 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
2/(1/1)
Max. input current per MPPT
20 A/20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
5kW (AS4777 4999)
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
5 kVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Cooling concept Nature cooling Net Weight 37 kg
-
-
X3-IES-6K-P
-
PV INPUT
Max. recommended PV array power
12 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
2 / (1 / 1)
Max. input current per MPPT
20 A/20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
6kW
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
6 kVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Cooling concept Nature cooling Net Weight 37 kg
-
-
X3-IES-8K-P
-
PV INPUT
Max. recommended PV array power
16 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
3 / (1 / 1 / 1)
Max. input current per MPPT
20 A / 20 A / 20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
10 kW (AS4777 9999)
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
10 kVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Cooling concept Nature cooling Net Weight 37 kg
-
-
X3-IES-10K-P
-
PV INPUT
Max. recommended PV array power
20 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
3 / (1 / 1 / 1)
Max. input current per MPPT
20 A / 20 A / 20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
10 kW (AS4777 9999)
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
10 kVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Cooling concept Nature cooling Net Weight 37 kg
-
-
X3-IES-12K-P
-
PV INPUT
Max. recommended PV array power
24 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
3 / (1 / 1 / 1)
Max. input current per MPPT
20 A / 20 A / 20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
12 kW
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
12 kVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Cooling concept Nature cooling Net Weight 37 kg
-
-
X3-IES-15K-P
-
PV INPUT
Max. recommended PV array power
30 kWp
MPPT voltage range
110~950 V
Number of MPP. trackers / strings per MPPT
3 / (1 / 1 / 1)
Max. input current per MPPT
20 A / 20 A / 20 A
-
AC INPUT & OUTPUT(ON-GRID)
Rated output power
15 kW (AS14999)
Rated AC voltage
3 / N / PE, 220 / 380 V
3 / N / PE, 230 / 400 V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Rated EPS output power
15 kVA
Peak EPS output power
2 times of rated power, 10s
Switchover time <10 ms
-
BATTERY MODEL
Battery type
Li-ion (LFP)
Ingress protection IP66
-
GENERAL
Dimensions (W x H x D)
717x405x209.5 mm
Cooling concept Nature cooling Net Weight 37 kg
-
